LED JUMPER

DYNAMO

CRANK

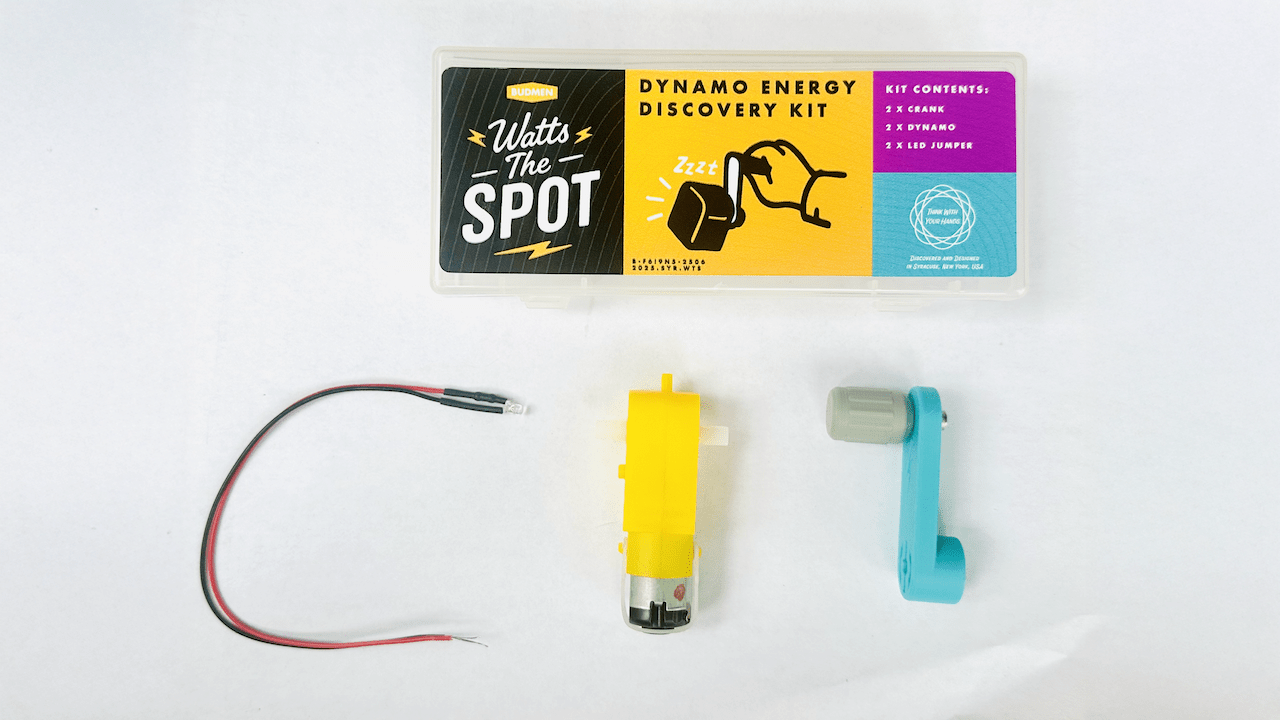

KIT CONTENTS

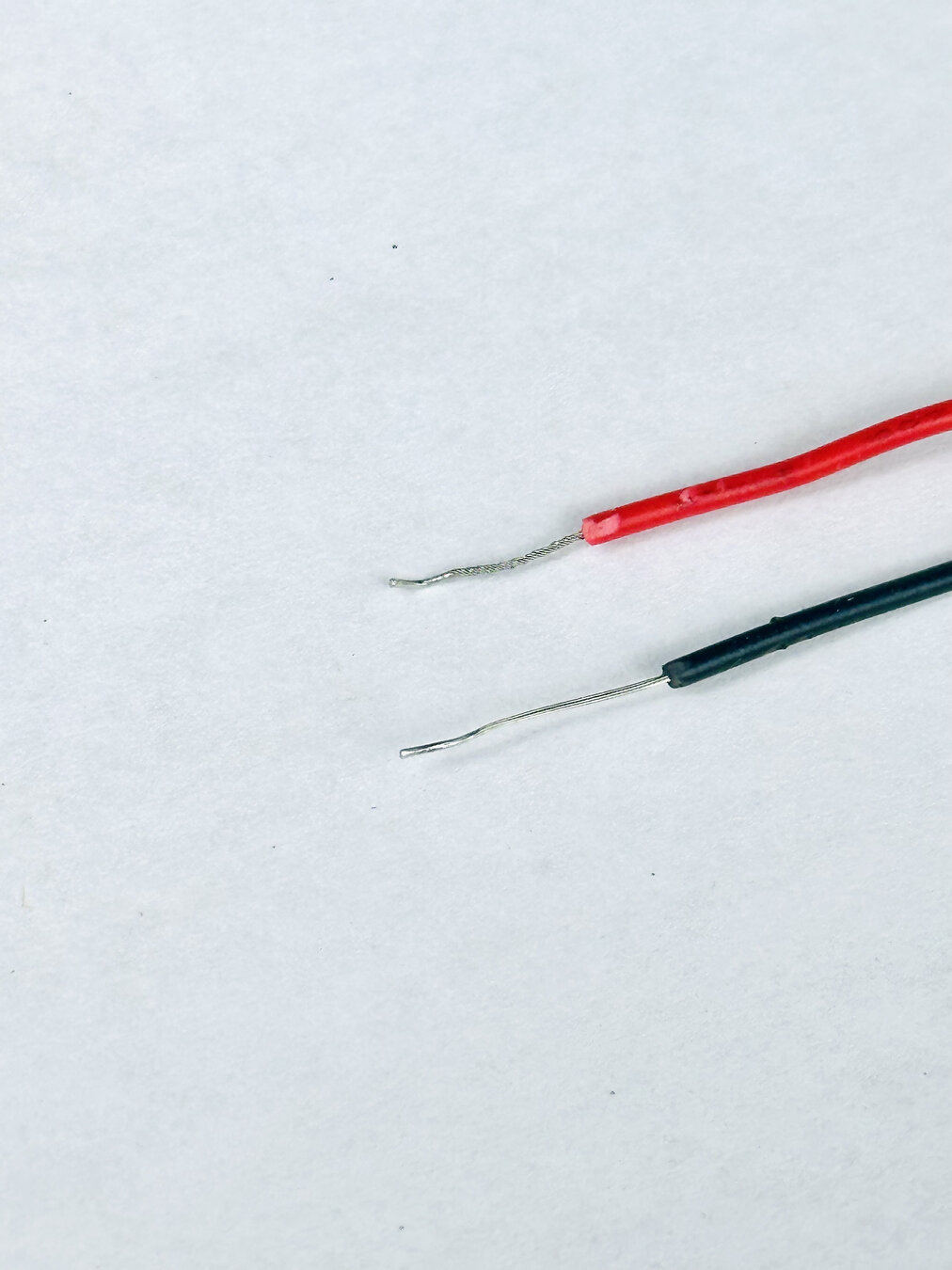

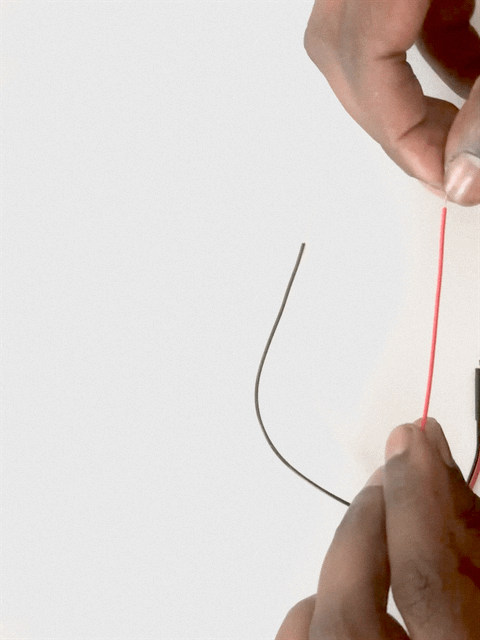

1. On the LED jumper, twist the strands at the end of the wires to make them easier to insert.

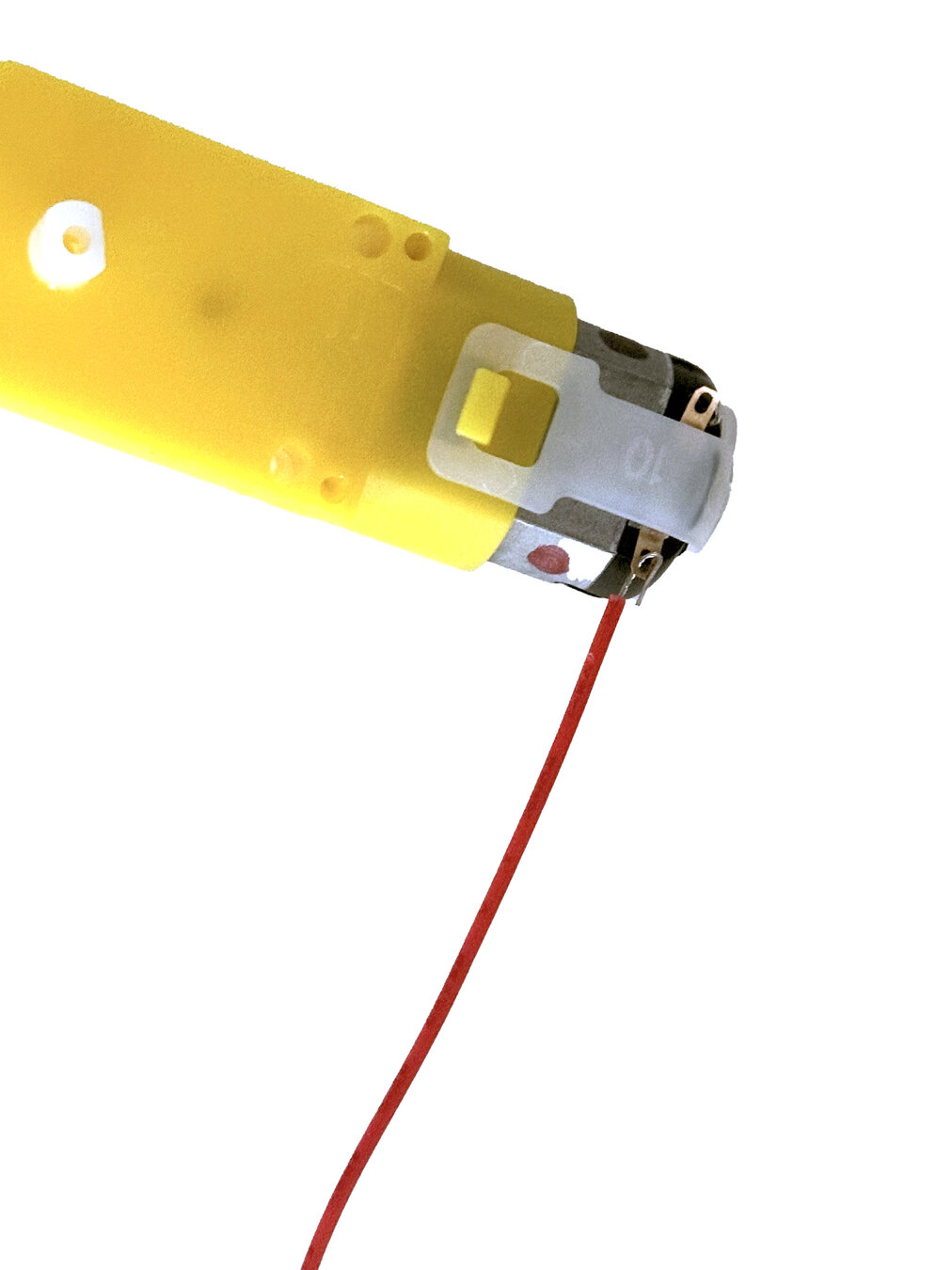

2. Slide the red wire into the copper loop on the motor, on the side with the red dot.

3. Fold the red wire over the copper loop on the motor

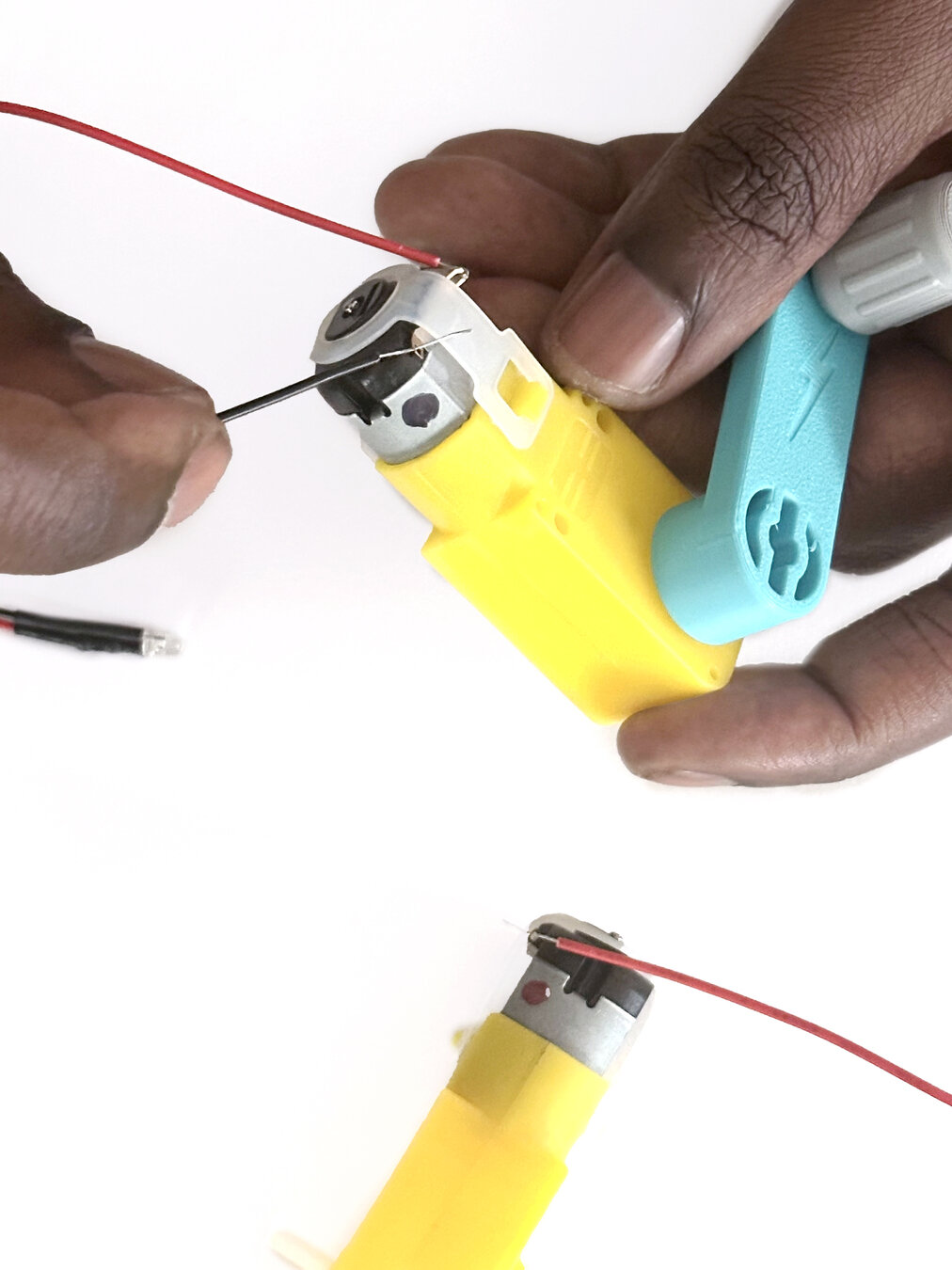

Do the same for the black wire: Slide the black wire into the copper loop on the motor, on the side with the black dot and fold over.

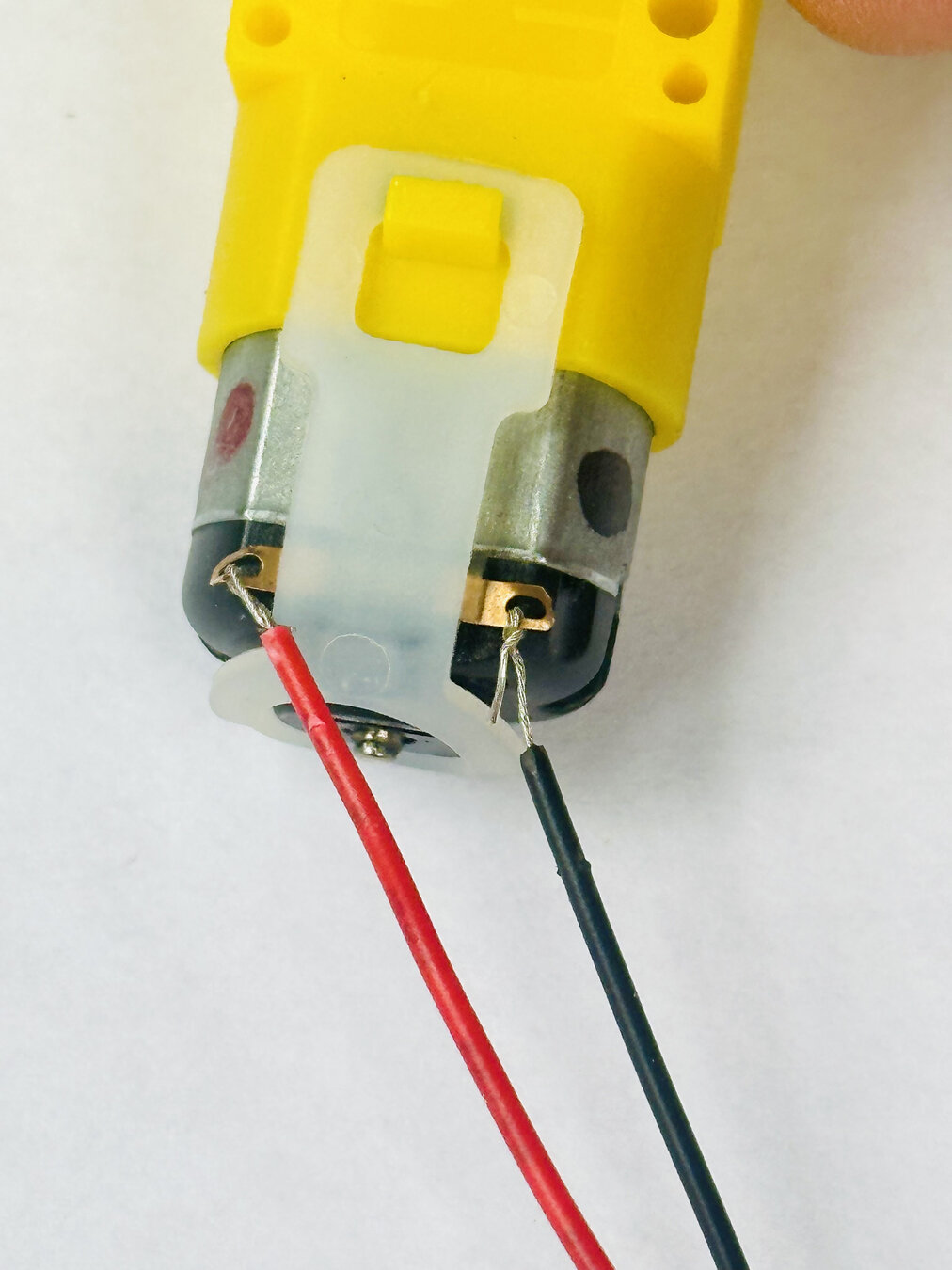

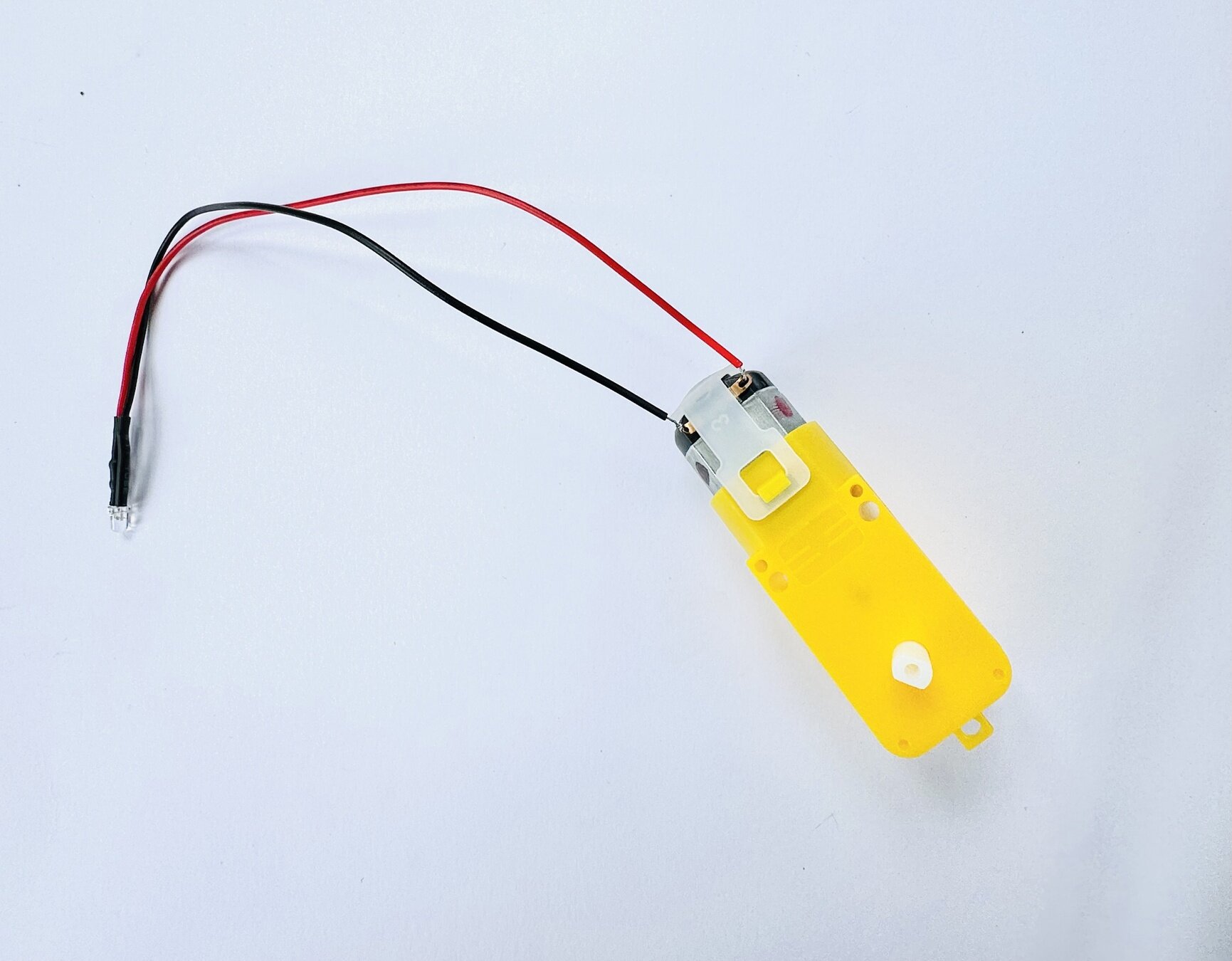

4. Twist the exposed part of the wire to secure it onto the motor.

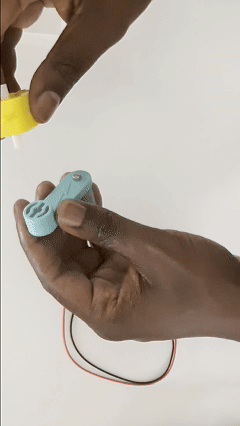

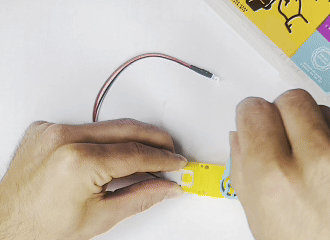

5. Push the crank handle onto the shaft of the motor gearbox.

6. Turn the crank quickly to light up the LED.
